Modbus sensors
Applications: Air or Liquid Temperature Measurement
Applications

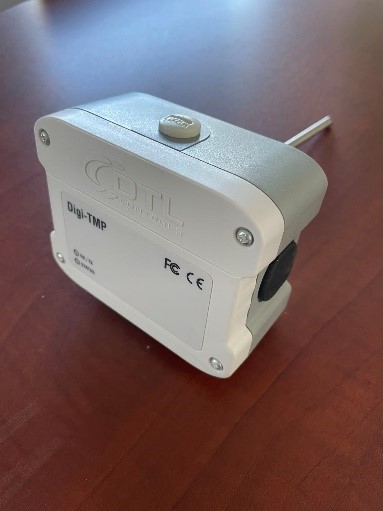

Digi-TMP-Modbus Temperature Sensor
Applications: Air or Liquid Temperature Measurement
Modbus RTU communication
Temperature Range: 0 to 250°F
Accuracy: ±0.5°F
It is suitable for both air and liquid temperature measurement. Different sensor headers can be used for different applications.
Advantage:
In data center or large spaces, and other applications, multiple point temperature measurement and monitoring is necessary. Modbus temperature sensor makes installation wiring an easy job.

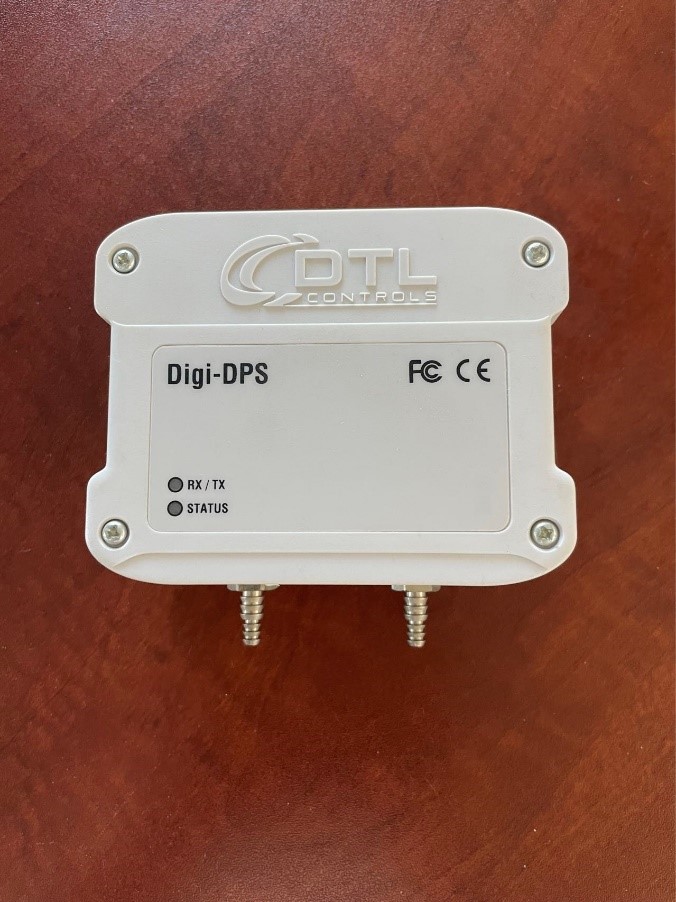

Digi-DPS-Modbus Air Pressure Sensor
Applications: Differential Pressure Measurement for Air or Gas
Modbus RTU communication
Output: Multiple Ranges: ±0.1 inH2O; ±0.5 inH2O; ±1 inH2O; ±5 inH2O; ±10 inH2O;
Accuracy: ±2%
It is suitable for multiple level air pressure or differential pressure measurements.
Advantage:
Modbus communication makes easier wiring.

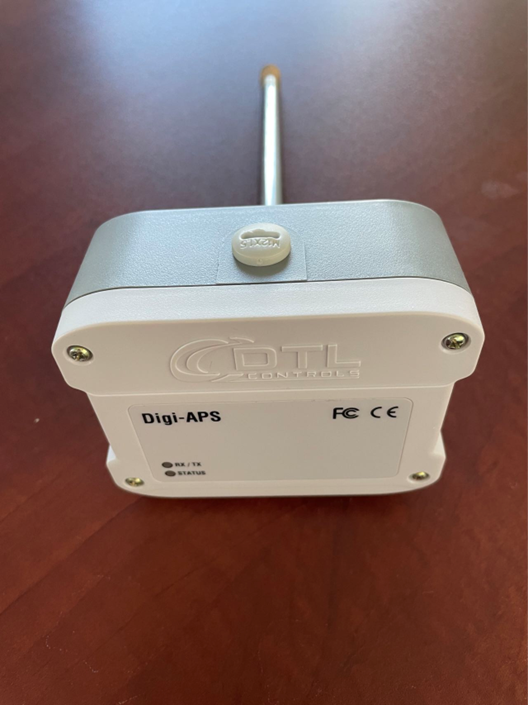

Digi-APS-Modbus Air property Sensor
Applications: Air Property Measurement
Modbus RTU communication
Output: Dry Bulb Temperature; Wet Bulb temperature; Dew Point Temeprature, Relative Humidity Ratio; and Enthalpy
Temperature Accuracy: ±0.5°F
Relative Humidity Accuracy: ±3%
Advantage:
For cooling tower control and economizer control, the wet bulb and enthalpy values are required. Digi-APS sensor provides these parameter values directly to the users through Modbus. This avoids complex programming in BAS.
Specify Modbus sensors for your facility
For specifications, pricing, or to scope a deployment, reach out by email.
